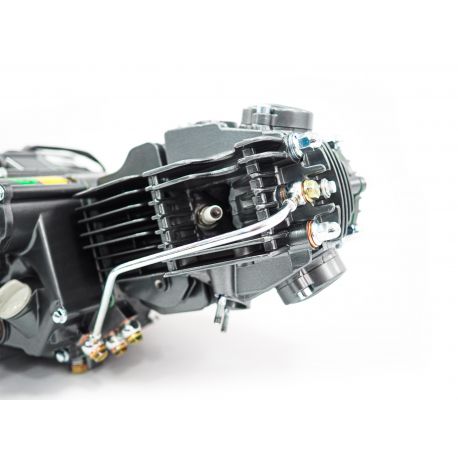

• Engine YX 160cc V3 with KLX Head Cylinder
  • Engine YX 160cc V3 with KLX Head Cylinder

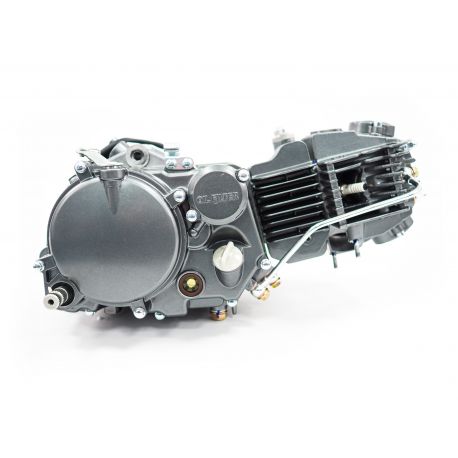

  • Engine YX 160cc V3 with KLX Head Cylinder

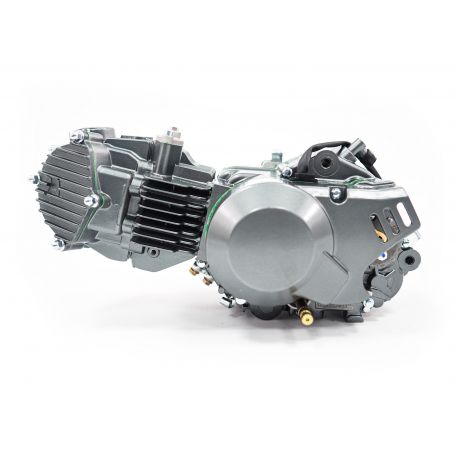

  • Engine YX 160cc V3 with KLX Head Cylinder

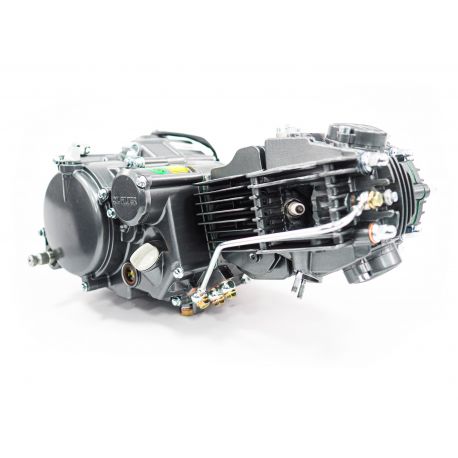

  • Engine YX 160cc V3 with KLX Head Cylinder

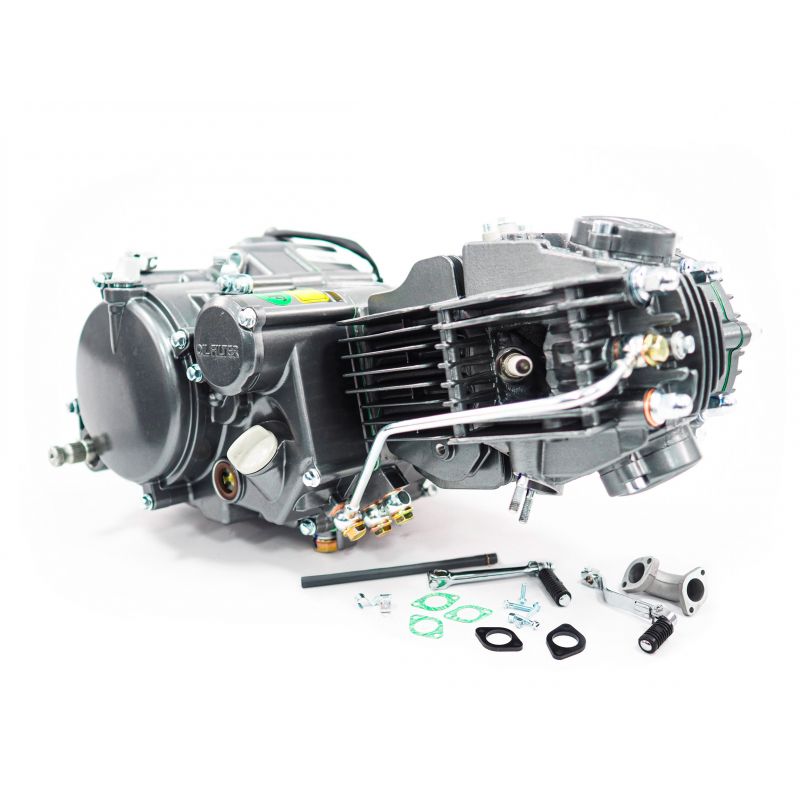

  • Engine YX 160cc V3 with KLX Head Cylinder

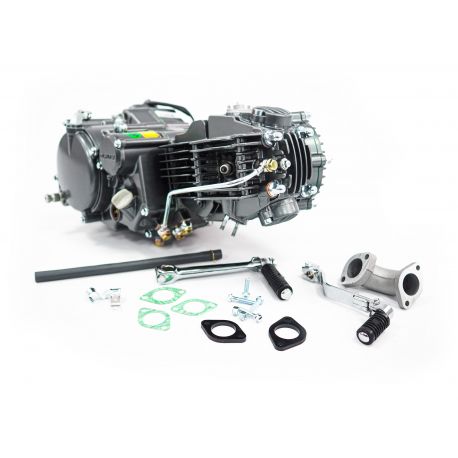

  • Engine YX 160cc V3 with KLX Head Cylinder

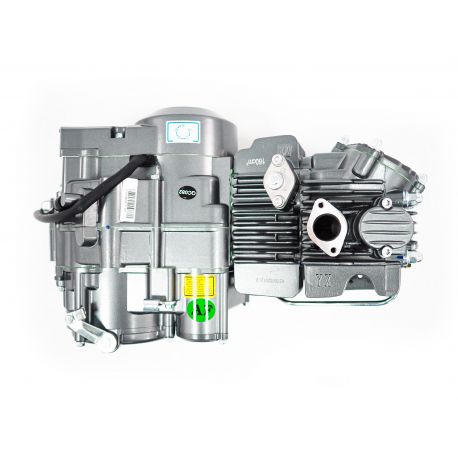

  • Engine YX 160cc V3 with KLX Head Cylinder
See spare parts and microfiches

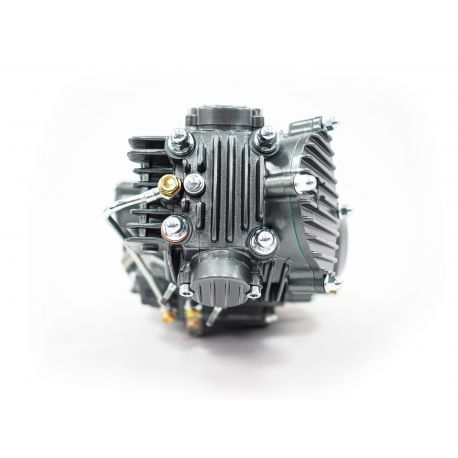

4T YX 160cc V3 KLX type engine

Réf : YX160 See the description
649.00€ 150.00€
499.00€
13x 14x 16x 18x 24x 36x 48x 60x 72x 84x ...
43.22 €   /  months
Buy now and pay as you go
1 At checkout step, select Younited Pay 2 Choose the repayment duration 3 Simply and securely connect your bank account 4 Receive a response within seconds

Start paying in just 30 days !
13x 14x 16x 18x 24x 36x 48x 60x 72x 84x Customise
Payment in   36  times

Your purchase for   18.77 €   / months

Total amount due 675.55 €

   Total credit amount

499 €

   Interest (excl. optional insurance)

176.55 €

Fixed APR
(excluding optional insurance) 22.99 %
Fixed lending rate 20.87 %
Voir plus
Ignition (option)
Carburetor (optional)

Out of Stock

Notify me when in stock

Notice d’aide au montage + d'infos
Must-haves

Pourquoi vous allez l'adorer !

  • The true 150cc YX (60mm piston)! Used in the French Pit Bike championships
  • Large KLX cylinder head with 60mm cylinder and extended crankshaft connecting rod
  • Number of HP: 15.5hp
  • Nervous and robust, it delights motocross enthusiasts on tracks!
  • Official distributor of YX© engines

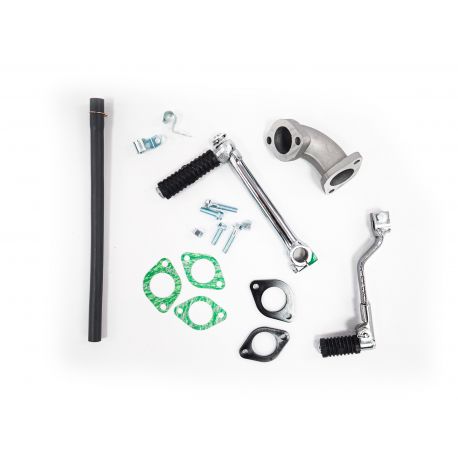

  • Delivered with kick starter, selector, intake pipe, and gasket
  • Manual 4-speed gearbox (N1234)
  • Reinforced clutch for starting in gear: No more downshifting to neutral when you stall, with this engine you restart immediately!
  • Ideal for experienced riders

YX 160cc Engine with V3 KLX Cylinder Head and Integrated Oil Filter for Dirt Bike, Pit Bike

This 160cc YX engine is equipped with the V3 cylinder head and integrated oil filter, this engine comes from the YX range and is one of the reference engines for competition, widely used in the French Pit Bike championship, it is recommended for advanced levels and riders (amateur A, amateur B)

In short, this engine is a rocket with potential to develop, the advantage of this engine is that it requires the same maintenance as a 150cc engine, that is to say a good break-in over 2/3 full tanks to start, and regular oil changes every 15 hours of use, lubrication and cleaning.

(Many replicas exist of this engine, we guarantee the official origin from the YX factory and warn against copies present on the market)

Starting advice: We recommend an engine oil change at startup as well as a break-in of 3 full tanks at mid-range. All adjustments are made at the factory, however, a valve adjustment may be necessary during the break-in if you observe kickback/compression returns or at the exhaust valve (Timing: 0.05 Intake / 0.08 Exhaust)

Recommended clutch cable: REF YC110-0108

https://www.minimx.fr/fr/cable-d-embrayage-et-d-accelerateur-dirt-bike/3248-cable-ycf-sp1-sp2-factory.html

Description of Stages Ignitions and Carburetors

  1. Ignition

-Stage 1 (18 euros)

Wiring harness + standard 1-pin CDI + NGK type ignition coil (ref: P0296 + P0299 + P0298-BK)

-Stage 2 (30 euros)

Wiring harness + CNC racing 1-pin CDI + red NGK type ignition coil (ref: P096 + P0298 + P0301)

  1. Carburetor

-Stage 1 (45 euros)

MIKUNI 26 carburetor + US1 air filter (ref: P0020 + US-38-BK)

-Stage 2 (49 euros)

MOLKT 26 carburetor + US1 air filter (ref: P0023 + US-44-BK)

-Stage 3 (79 euros)

KEIHIN 26 carburetor + flexible sleeve + air filter (ref: PE26KEIHIN + P0054 + US-44-BK)

-Stage 4 (99 euros)

KEIHIN PE28 carburetor + flexible sleeve + air filter (ref: PE28 + P0054 + AF-48-BK)

-Stage 5 (139 euros)

KEIHIN PE28 carburetor with 9 jets + flexible sleeve + air filter (ref: PE28-JP + P0054 + AF-48-BK)

-Stage 6 (159 euros)

KEIHIN PE28 DAYTONA carburetor + flexible sleeve + air filter (ref: 85707 + P0054 + AF-48-BK)

Schema Electrique Allumage

Detail of the electrical connection for your Dirt Bike and Pit Bike ignition plates (88cc, 107cc, 125cc, 140cc, 150cc)

Download (721.99KB)

Motorization

Kick Start Size 16mm (Big Size)
Engine Type Single Cylindre 4 Stroke 160cc YX 4temps
Engine Capacity 160cc
Cooling Type Oil Cooling
Bore 60mm x 57mm
Clutch Any Gear Start (Can be start with any gear up)
Start Up Kick Start
Fuel Unleaded 95 / 98
Clutch Type Manual
Ignition 3 wire ignition tray (without light)
Number of CVs 14,5hp
Compression Ratio 9.5:1
Maximum torque 11,8Nm/7500 trs/min
Maximum Power 10,6Kw/ 8500 trs/min
Low Engine Part 160cc YX 4 Stroke type KLX V3 with Start-in-Gear Clutch
High Engine Part 160cc YX type KLX V3 4 Stroke 60mm Cylinder
Horizontal/Vertical Motor Horizontal
4 Stroke / 2 Stroke 4 Stroke

Cycle Parts

Frame Chromoly Double Reinforced Frame
Oil Engine Capacity 900 ml

Dimensions/Size

Dimensions 460x300x200 (Carton)

Chain and Drive

Sprocket Size 17mm

Others

Warranty 1 month (parts only)
Brand YX
Type of bike Dirt Bike, Pit Bike
Shipping origin France
Want us a question about: 4T YX 160cc V3 KLX type engine Ask a Question
YX160

Specific References

ean13
3667155001527
