4T YX 125cc Engine (Classic Start)

Ref: YX125-NS See the description
299.00€ 40.00€
259.00€
13x 14x 16x 18x 24x ...
22.43 €   /  months
Buy now and pay as you go
1 At checkout step, select Younited Pay 2 Choose the repayment duration 3 Simply and securely connect your bank account 4 Receive a response within seconds

Choose the number of monthly payments
13x 14x 16x 18x 24x Slider icon

Your purchase in 24 times, for 13.29 € by month.

Total 319.05 €
Including fees 0 €

For a credit amount of 259 € , to which are added 60.05 € interest, either a total amount due of 319.05 €. The APR fixed is 22.99 % excluding optional insurance and the fixed interest rate of 20.87 %.

Voir plus
Ignition (option)
Carburetor (optional)

In stock

More than 20 parts in stock

Must-haves

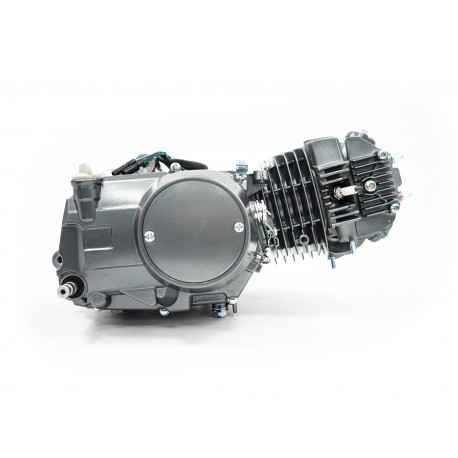

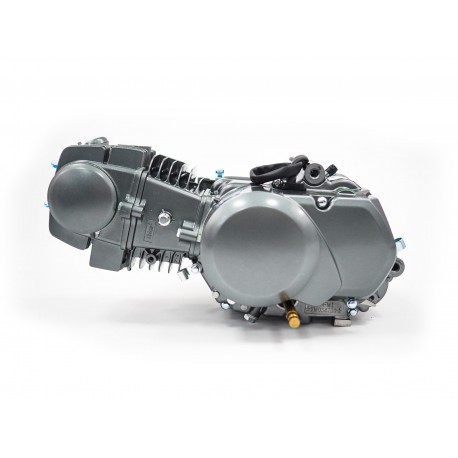

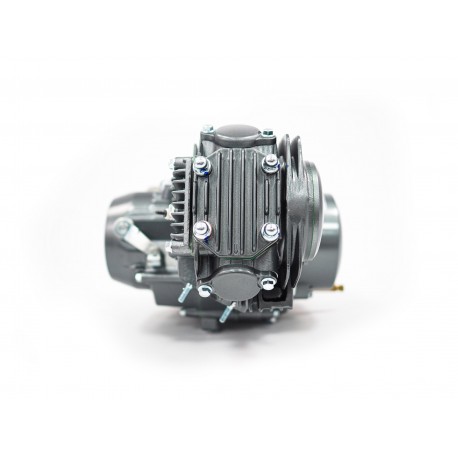

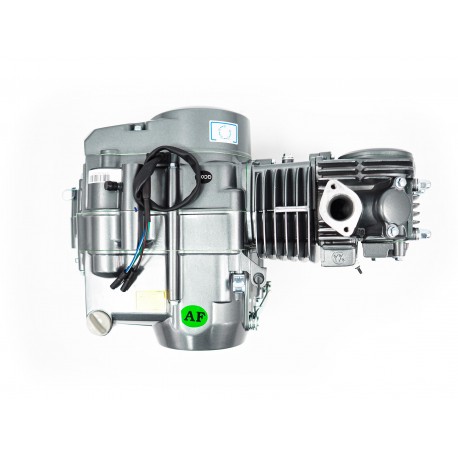

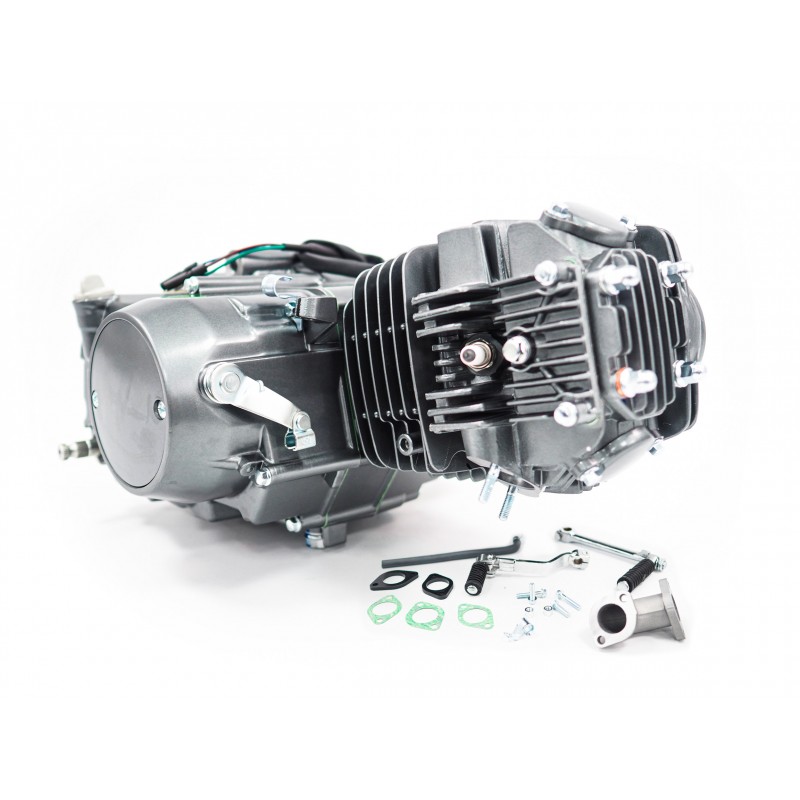

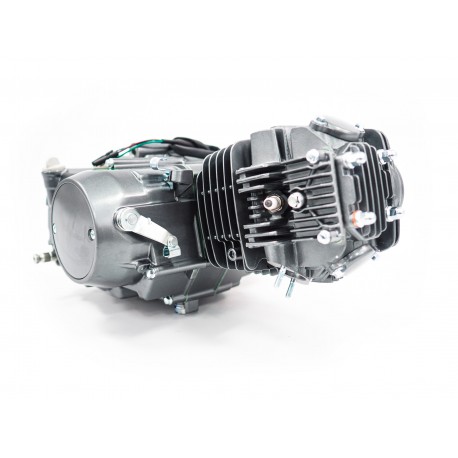

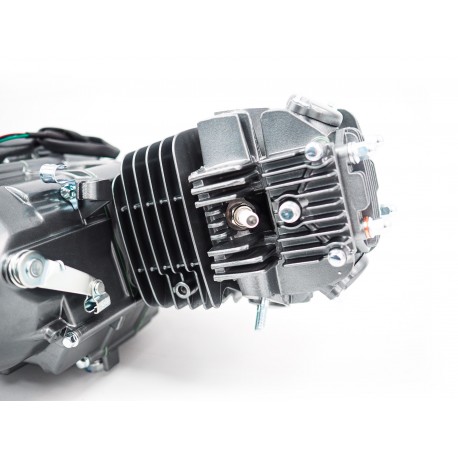

125cc YX Engine Classic Start for Dirt Bike, Pit Bike

The 125cc YX engine is built to withstand the rigors of off-road competition. Its durability is essential to ensure consistent performance during long racing sessions and intensive training.

Easy Maintenance: Another advantage of this engine is its ease of maintenance. With a simple and well-thought-out design, regular maintenance is easy to perform, allowing riders to spend less time in the garage and more time on the track.

Versatility: Although this engine is mainly used in off-road racing, its versatility also allows it to adapt to other applications such as pit bikes and recreational motorcycles.

Power: 10hp

Bore: 52.4mm

Speed: 4-speed manual N1234

(Many replicas exist of this engine, we guarantee the official origin from the YX factory and warn against copies present on the market)

Compatible with all brands of dirt bike, pit bike (YCF / GUNSHOT / CRZ / PISTERPRO / ORION...)

Starting advice: We recommend an engine oil change at startup as well as a break-in of 3 full tanks at mid-range. All settings are done at the factory, however, a valve adjustment may be necessary during the break-in if you observe kickback/compression returns or at the exhaust valve (Timing: 0.05 Intake / 0.08 Exhaust)

For more information, please visit the technical data tab

Description of Ignition and Carburetor Stages

Ignition

-Stage 1 (18 euros)

Wiring harness + standard 1-pin CDI + NGK type ignition coil (ref: P0296 + P0299 + P0298-BK)

-Stage 2 (30 euros)

Wiring harness + CNC racing 1-pin CDI + red NGK type ignition coil (ref: P096 + P0298 + P0301)

Carburetor

-Stage 1 (59 euros)

MIKUNI 26 Carburetor + US1 Air Filter (ref: P0020 + US-38-BK)

-Stage 2 (69 euros)

MOLKT 26 Carburetor + US1 Air Filter (ref: P0023 + US-44-BK)

Motorization

Kick Start Size 16mm (Large diameter)
Engine Type 4-stroke single-cylinder 125cc YX
Engine Capacity 125cc
Cooling Type by air
Bore 54mm x 54mm
Clutch In grip (Possibility to start with a speed)
Start Up Kick start
Fuel Unleaded 98
Clutch Type Manuel
Ignition 3-Wire Ignition Switch (without lighting)
Brand Engine YX
Horizontal/Vertical Motor Horizontal
4 Stroke / 2 Stroke 4 Stroke

Cycle Parts

Oil Engine Capacity 900 ml

Chain and Drive

Chain Size 420
Sprocket Size 17mm

Others

Warranty 1 month (parts only)
Brand YX
Type of bike Dirt Bike, Pit Bike
Shipping origin France

Questions about 4T YX 125cc Engine (Classic Start) (20)

Questions asked in other languages

  • Combien de ml faut-il pour les vidanges ?

    FR Question from Baptiste, on

    Answer from the Mini MX team

    Bonjour, entre 750 et 850 ml sur ce moteur, un indicateur de niveau est présent sur le bouchon de remplissage. https://www.youtube.com/watch?v=RJkJK9_rlm0&t=499s

    Cordialement

  • bonjous est ce que le motur 125 yx est il compatible avec ma 125 ghunshot de 2019

    FR Question from Natheo, on

    Answer from the Mini MX team

    Bonjour, oui les moteurs sont identique.

  • Bonjour, j’ai une Apollo am d15 moteur 150 lifan J’aimerais savoir si ce moteur est compatible pour la passer en 125

    FR Question from Aillaud B., on

    Answer from the Mini MX team

    Bonjour, oui compatible avec câble embrayage pour démarrage classique.

Can't find the answer to your question?

YX125-NS

Specific References

ean13
3667155001510
