Carburetor - PTG PZ26

Ref: PTG26 See the description
49.99€ 20.00€
29.99€

In stock

Order it before 14:00 on Monday and receive it between 11/17/26 and 11/18/26 with DPD Livraison en relais Pickup

More than 20 parts in stock

Must-haves

Why you're going to love it!

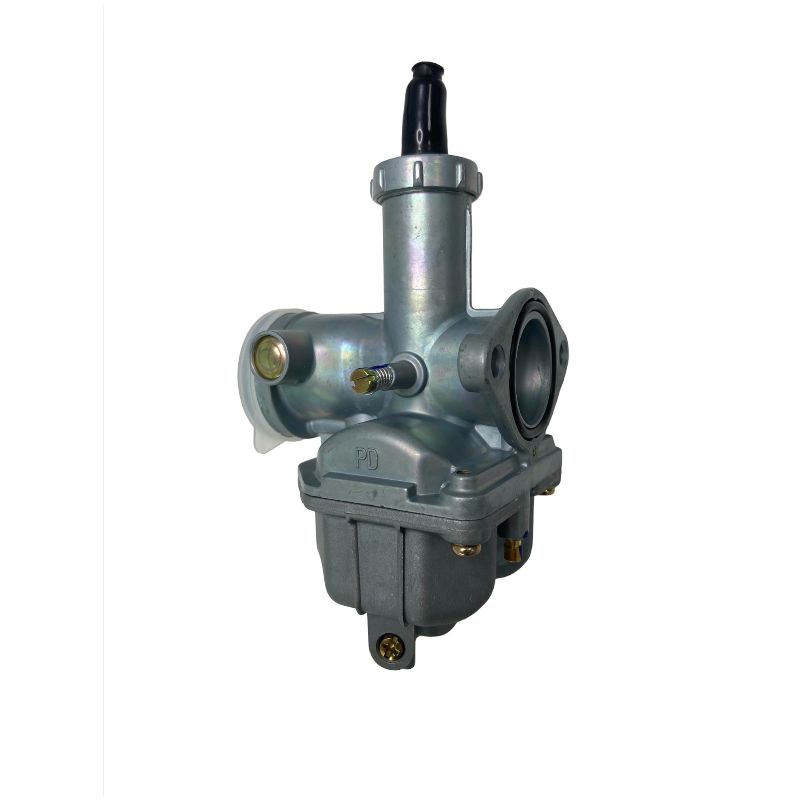

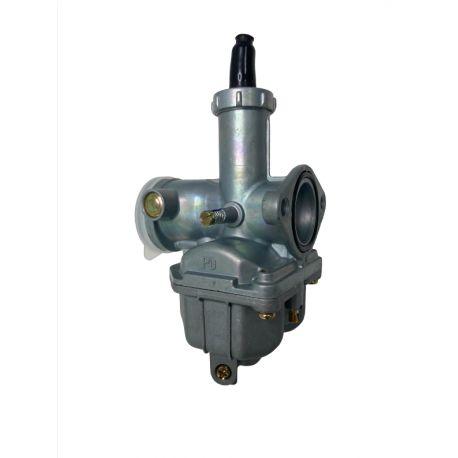

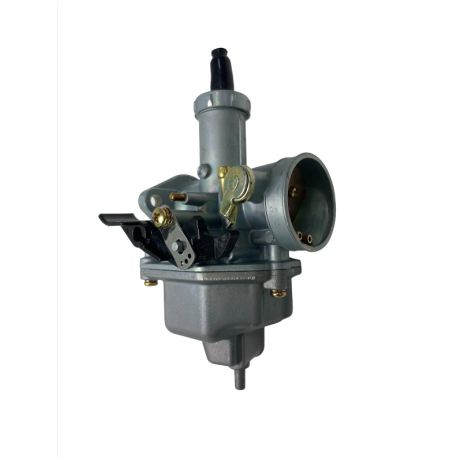

PTG PZ26 Carburetor

This 26mm Carburetor is suitable for 4-stroke engines from 110cc to 140cc for Dirt Bike, Pit Bike.

This Carburetor is one of the best-selling and most used, found on the famous Pit Bike brands YCF, Gunshot, CRZ, PitsterPro, Bastos, RSR...etc

Richness screw on the side or under the bowl depending on the series

SPECIFICATIONS:

-Diameter at the venturi (slide) = Ø 22mm

-Outer diameter air filter mounting = Ø 38mm

-Outer diameter intake outlet = Ø 26mm

-Inner diameter intake outlet = Ø 28mm

-Pipe mounting center distance: 48mm

Compatible with 38mm air filters.

Some advice:

Spark plug too black = too rich, you need to decrease the jet size

Spark plug too white = too lean, you need to increase the jet size

Check your intake and carburetor gaskets if no air intake = OK

Also remember to adjust the height of your needle using the clip

Lowering by one notch will raise the needle thus enriching the carburetor and vice versa.

Our motorcycles, quads, pocket bikes, etc., are not approved for use on public roads. Their use is strictly limited to...

Our motorcycles, quads, pocket bikes, etc., are not approved for use on public roads. Their use is strictly limited to closed, private tracks that comply with the provisions of Article R 331-21 of the French Sports Code.

Our vehicles (motorcycles, quads, buggies, etc.) intended for children should not be considered mere toys, but motorized machines belonging to the realm of motorsports, which involve inherent risks.

Minors under the age of 14 are not authorized to purchase, rent, or use non-approved vehicles, such as mini-motorcycles, children's quads, unapproved quads, motocross bikes, pocket bikes, pocket cross bikes, pit bikes, or dirt bikes. Their use is strictly limited to activities organized by approved sports associations, such as the FFM (French Motorcycling Federation) or UFOLEP (French Union of Secular Sports and Cultural Activities). It is important to note that the maximum speed of these vehicles on public roads is 24 km/h, which prohibits their use on public roads. Furthermore, minors under 16 years of age must be constantly supervised by an adult when using these machines.

To ensure your safety, it is essential to wear appropriate protective equipment, including an approved safety helmet, motocross-type safety glasses, gloves, elbow pads, knee pads, and a chest protector. It is also recommended to wear a long-sleeved top, long trousers, and high-top shoes that cover at least the ankle, ensuring that the laces are securely tied and away from the wheels, engine, and drive system.

You must register your machine with the Ministry of the Interior within 15 days of the purchase date. This process can be completed online at the following address: https://www.service-public.fr/particuliers/vosdroits/R20458. After submitting the declaration, you will receive an identification number to be engraved on the chassis and displayed on a visible plate. Please note that this plate can be removed during sporting activities.

We also encourage you to consult the charter outlining the rules to be followed for the use of your vehicle, available here: https://www.legifrance.gouv.fr/loda/id/JORFTEXT000020910287/, or to refer to the user manual, which you can download.

Motorization

Engine Capacity 125cc, 140cc, 149cc
Filter Size Ø38mm

Fuel system

Venturi diameter 22mm
Carburetor size 26mm

Others

Color Gray
Type of bike Dirt Bike, Pit Bike
Shipping origin France

Questions about Carburetor - PTG PZ26 (9)

Questions asked in other languages

  • Bonjour, j aimerais changer le gicleur mais je ne connais pas la taille de celui d origine n étant pas frappé dessus.Pourriez vous m indiquer la dimension de ceux montés d origine lors de l achat de ce carburateur. Merci

    FR Question from Zadra O., on

    Answer from the Mini MX team

    Bonjour, malheureusement le fabricant ne nous donne pas cette information

  • Bonjour quel est le reglage d'origine en tour de vis s'il vous plaît ?

    FR Question from Carvalho H., on

    Answer from the Mini MX team

    Bonjour, pour ajustez votre vis de richesse. Pour cela resserrez votre vis à fond et desserrez-la de 2 tours ou 2.5 tours max

  • Bonjour je voudrais savoir la taille des gicleurs ainsi que la position de la vis de richesse (Pour info d origine c est 3592 et vis de richesse sur le cote] MERCI D AVANCE POUR VOTRE REPONSE

    FR Question from Legrand L., on

    Answer from the Mini MX team

    Bonjour, je vous invite à nous contacter à [email protected] afin que l'on puisse vous guider au mieux.
