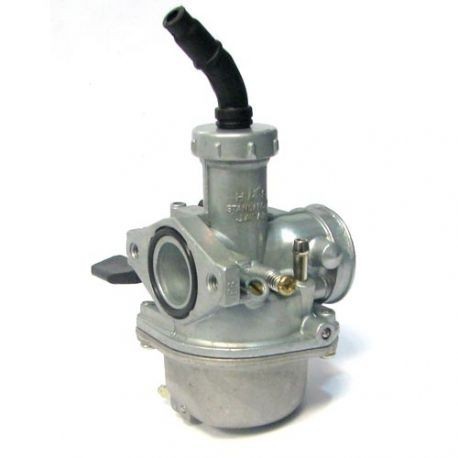

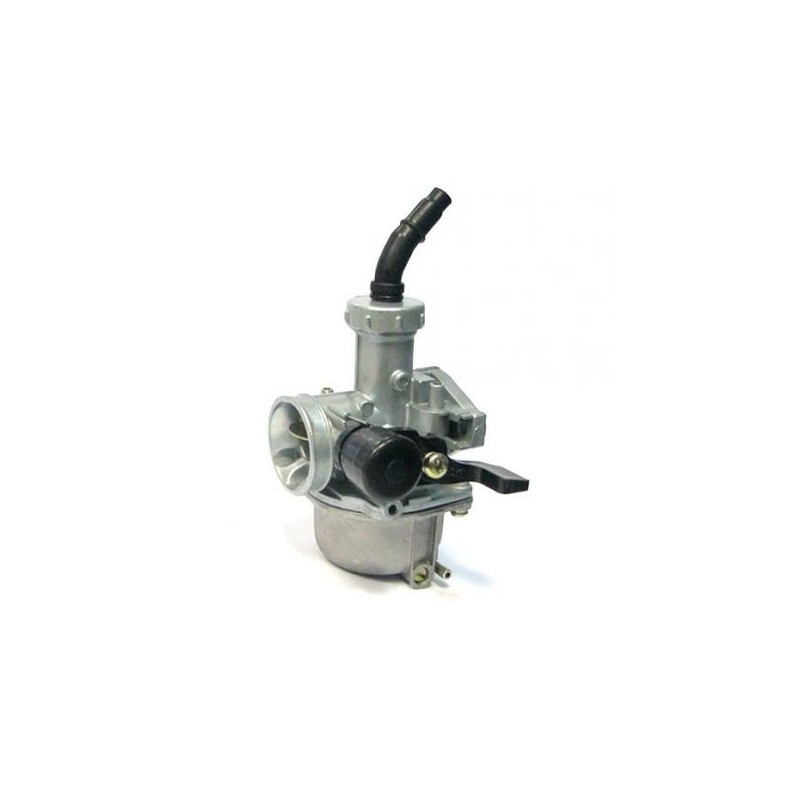

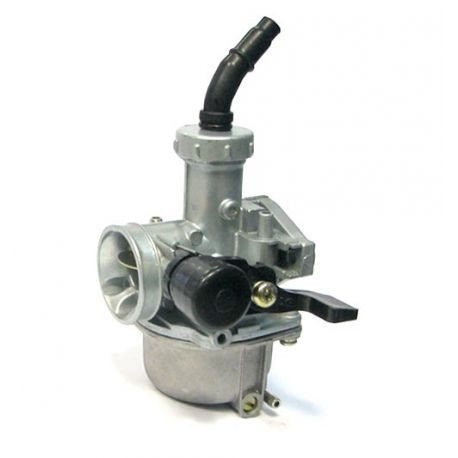

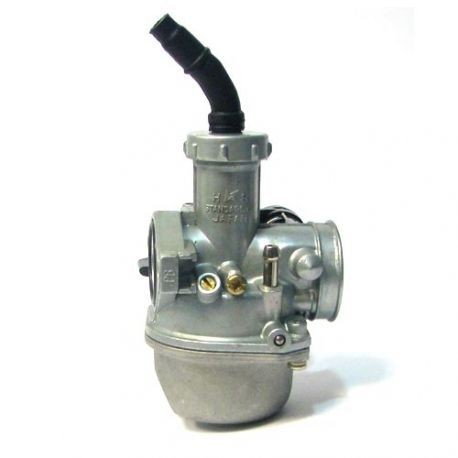

JINKE Carburetor - 22mm

Ref: jinke22 See the description
34.99€ 15.00€
19.99€

In stock

Order it before 14:00 of tomorrow and receive it between 11/17/26 and 11/18/26 with DPD Livraison en relais Pickup

More than 20 parts in stock

Must-haves

Why you're going to love it!

  • JINKE 22 MM Carburetor for Dirt Bike, Pit Bike
  • Recommended for easy tuning on 90cc to 110cc engines

JINKE Carburetor

JINKE 22mm Carburetor for Dirt Bike, Pit Bike, very easy to install, suitable for 4-stroke engines 90cc to 110cc.

This original carburetor is preset for good performance of a 90cc or 110cc engine. The recommended fuel is SP98 or SP95.

WARNING: Do not use SP95 E10

FEATURES

-Venturi diameter (slide): Ø 17mm

-Outer diameter air filter mount: Ø 32mm

-Inner diameter intake outlet: Ø 22mm

-Pipe mounting center distance: 48mm

- Dimension: 64mm x 75mm x 142mm (Length x Width x Height)

Supplied with overflow hose

Some tips

Spark plug too black = too rich, you need to reduce the jet size

Spark plug too white = too lean, you need to increase the jet size

Check your intake and carburetor gaskets if no air intake = OK

Also remember to adjust the height of your needle using the clip

Lowering by one notch will raise the needle thus enriching the carburetor and vice versa.

Motorization

Engine Capacity 88cc, 107cc, 110cc
Filter Size Ø35mm

Fuel system

Venturi diameter 17mm
Carburetor size 22mm

Others

Color Gray
Type of bike Dirt Bike, Pit Bike
Shipping origin France

Questions about JINKE Carburetor - 22mm (13)

Questions asked in other languages

  • Bonjour j'ai un 125 rookie est je voudrais changer mon carburateur pour que sa mieux vous me conseiller le quelle

    FR Question from Aaron, on

    Answer from the Mini MX team

    Bonjour

    vous pouvez monter un carburateur taille 22 jusqu'à 26 sur un 125cc, le Molkt, le Mikuni et le Nibbi sont très bien

  • Bonjour est ce que ce carbu est bon pour un ycf 88 cc

    FR Question from Ordas P., on

    Answer from the Mini MX team

    Bonjour, ce carburateur peut s'adapter

  • Bonjour, Pourriez-vous m'indiquer quelle est la taille du gicleur de ralentit et la taille du gicleur principal ? (Pour montage Lifan 88cc) Merci d'avance !

    FR Question from Eliott, on

    Answer from the Mini MX team

    Bonjour, cette information ne nous ait pas communiquer par l'usine Jinke
