Jinke Carburetor - 26mm

Réf : P0019 See the description
49.99€ 25.00€
24.99€

In stock

Order it before 14:00 of tomorrow and receive it between 7/21/26 and 7/22/26 with DPD Livraison en relais Pickup

More than 20 parts in stock

Must-haves

Pourquoi vous allez l'adorer !

  • 26mm carburetor for 50cc to 125cc Dirt Bike, Pit Bike engine
  • Excellent value for money
  • Easy to install and adjust

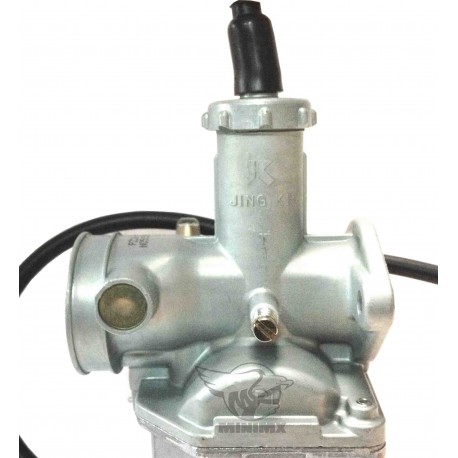

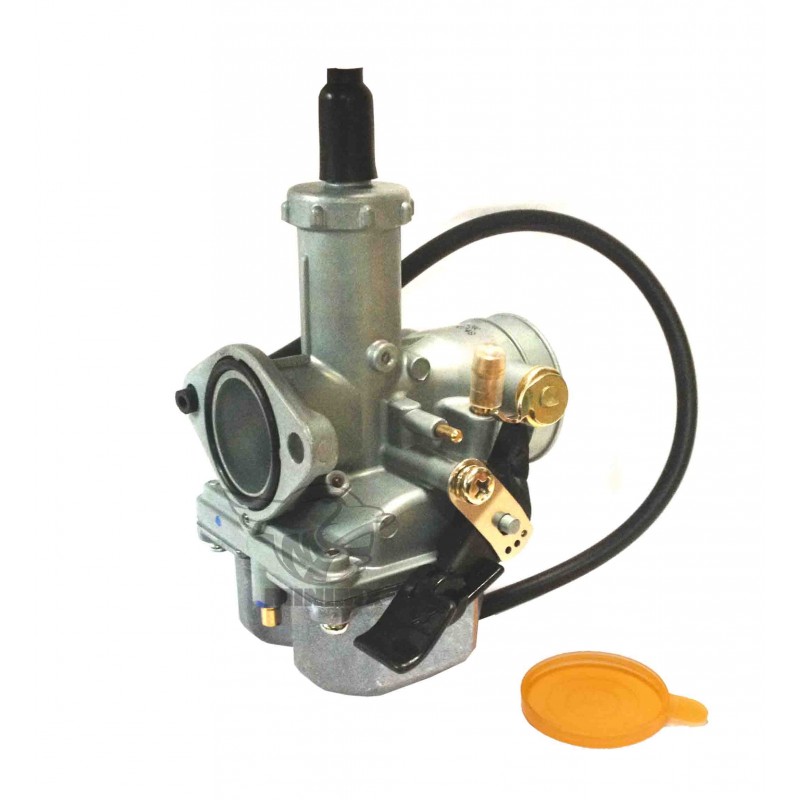

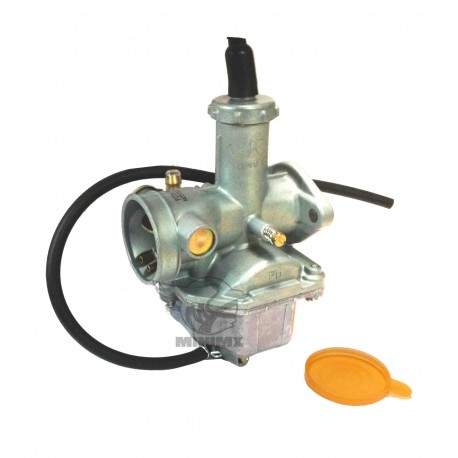

26mm Carburetor for Dirt Bike, Pit Bike, very easy to install, suitable for 4-stroke engines 50cc to 125cc.

FEATURES:



-Venturi diameter (slide): Ø 20mm

-Outer diameter air filter mount: Ø 38mm

-Inner diameter intake outlet: Ø 26mm

-Pipe mounting center distance: 48mm

Compatible with 38mm air filters.

We recommend UNI Filters in 38mm available in the category "Air Filters"

http://www.minimx.fr/84-filtre-a-air-dirt-bike



Some tips:



Spark plug too black = too rich, you need to reduce the jet size

Spark plug too white = too lean, you need to increase the jet size

Check your intake and carburetor gaskets if no air leak = OK

Also remember to adjust the height of your needle using the clip

Lowering by one notch will raise the needle thus enriching the carburetor and vice versa.

Motorization

Engine Capacity 125cc Lifan, 140cc, 150cc, 149cc, 110cc
Carburator 26mm
Filter Size Ø38mm

Fuel system

Venturi diameter 20mm
Carburetor size 26mm

Others

Color Silver
Brand Jinke
Type of bike Dirt Bike, Pit Bike
Shipping origin France
