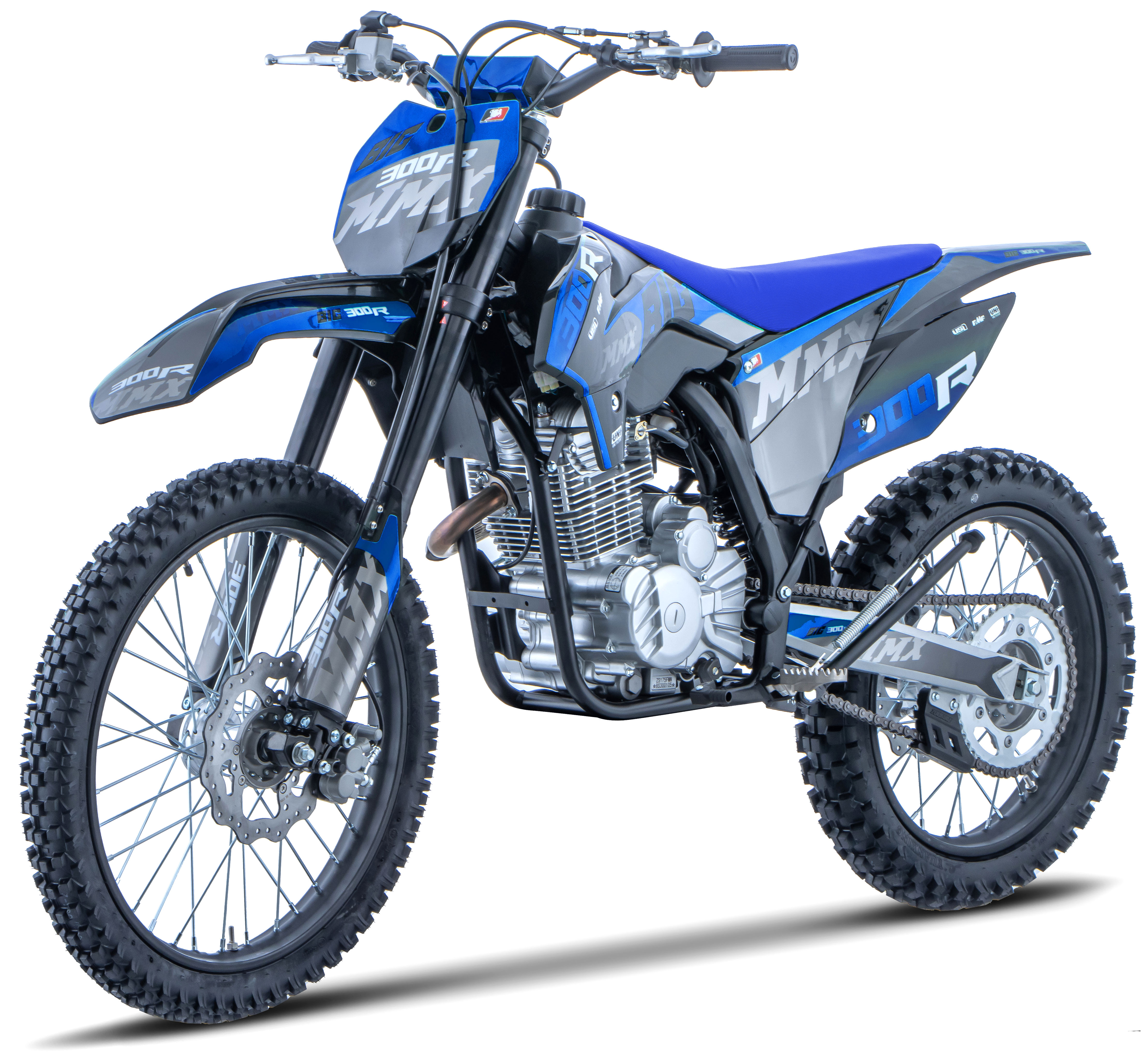

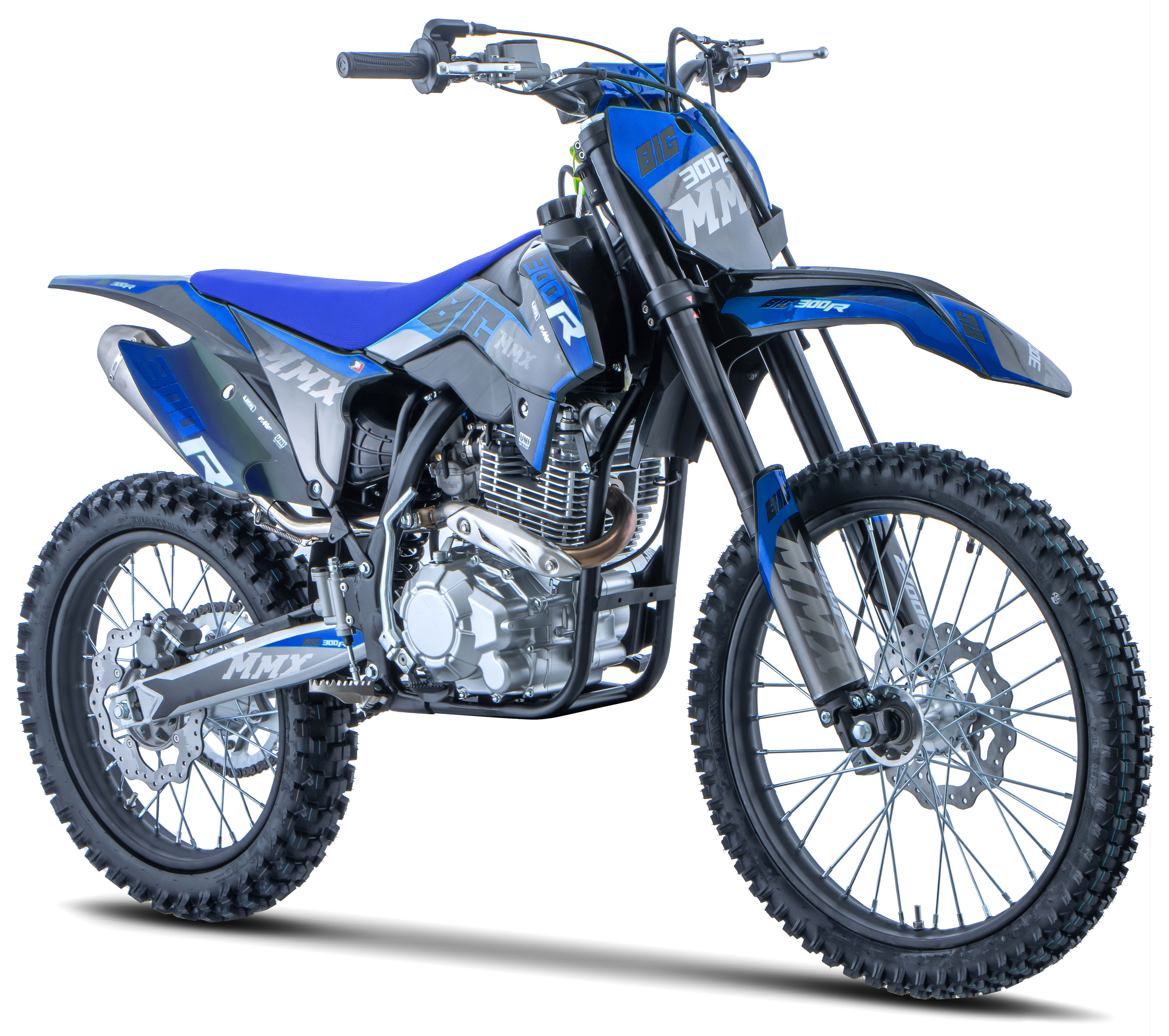

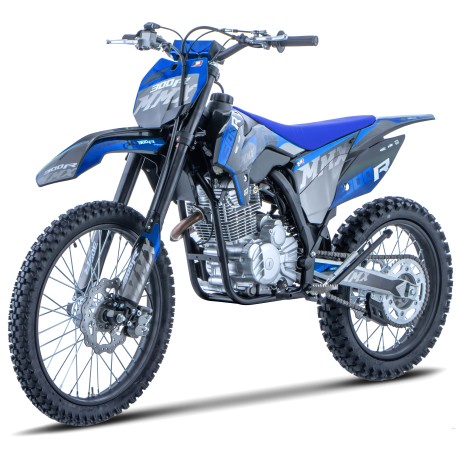

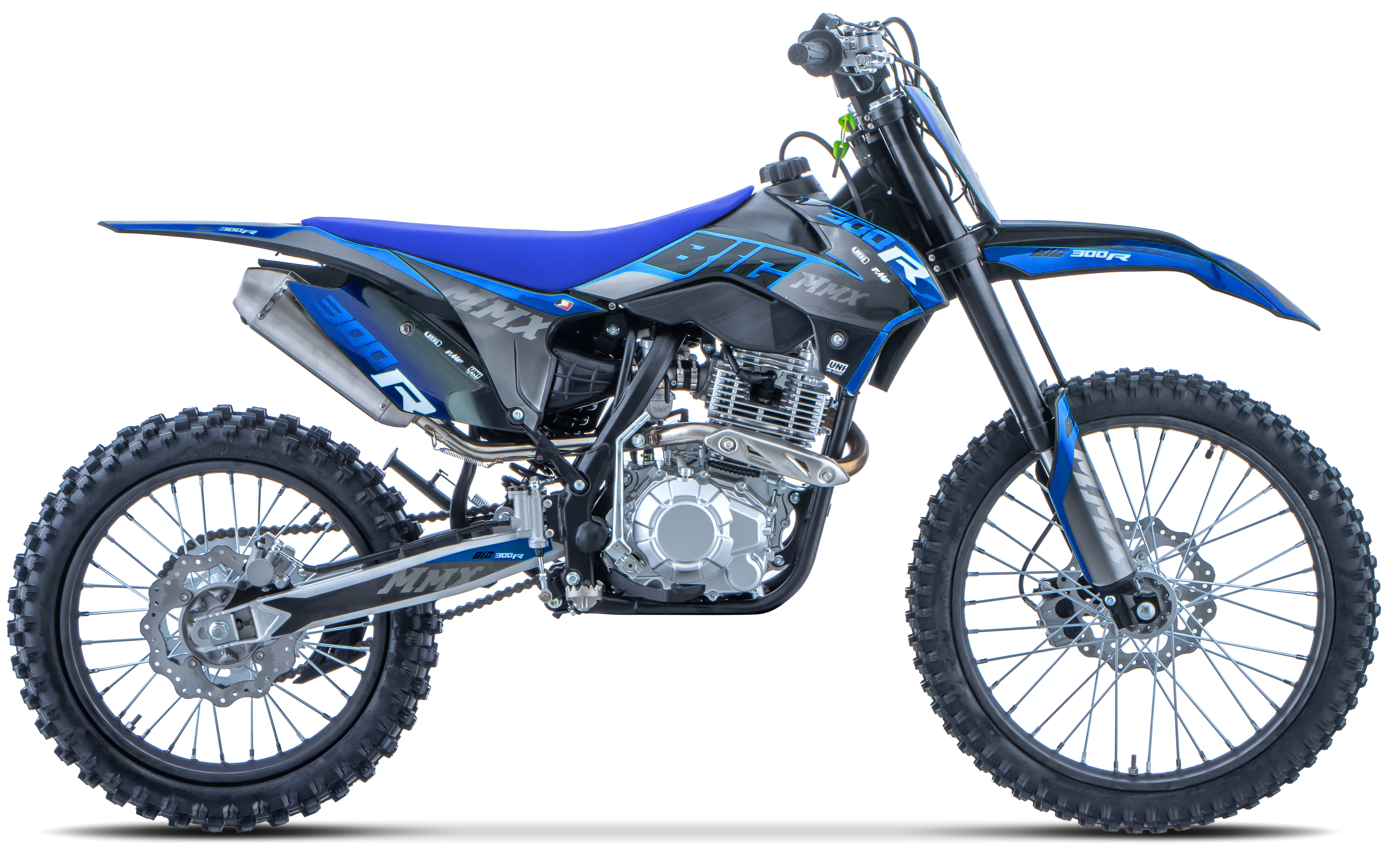

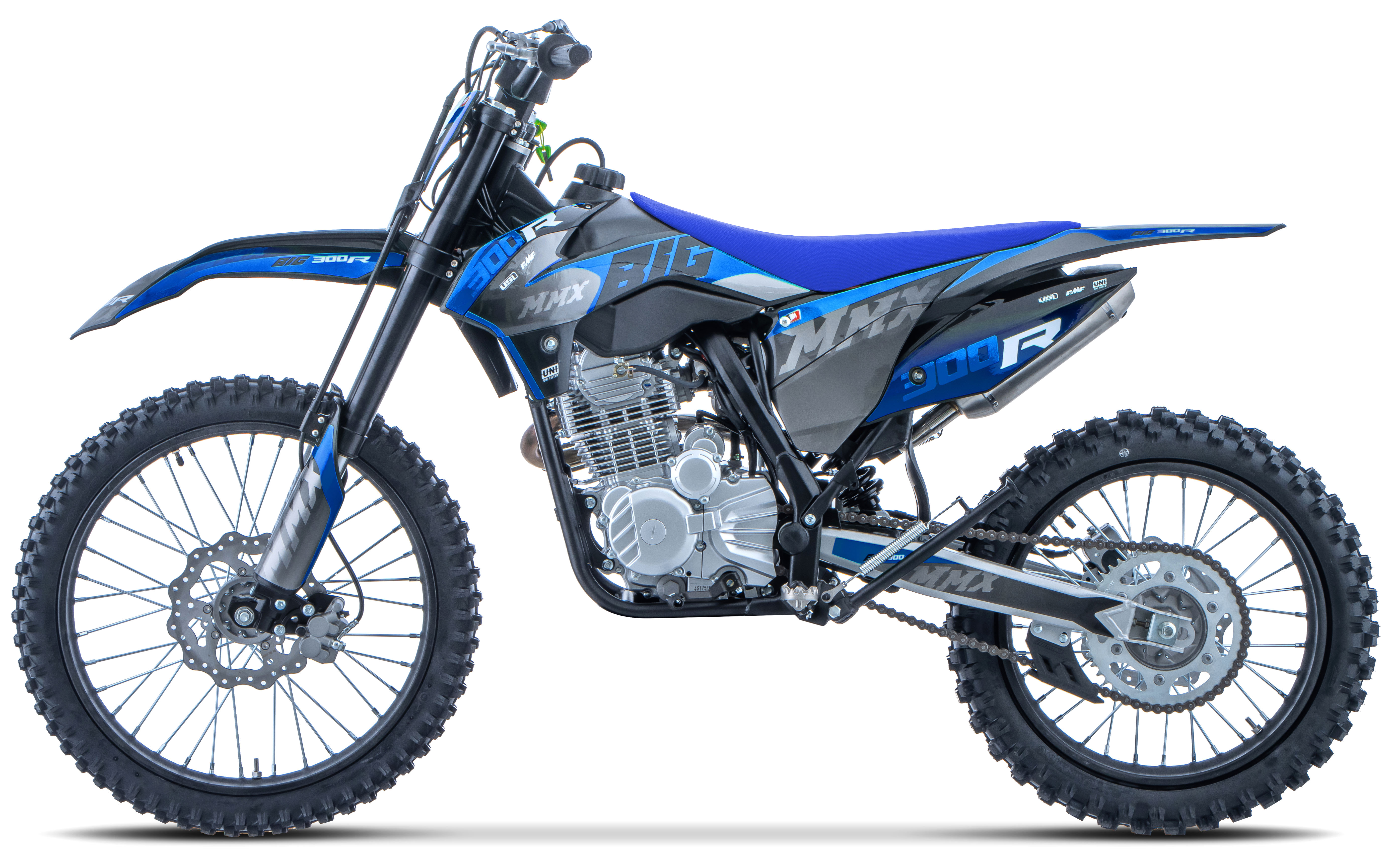

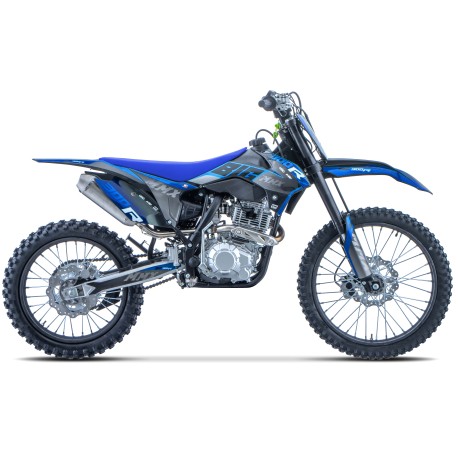

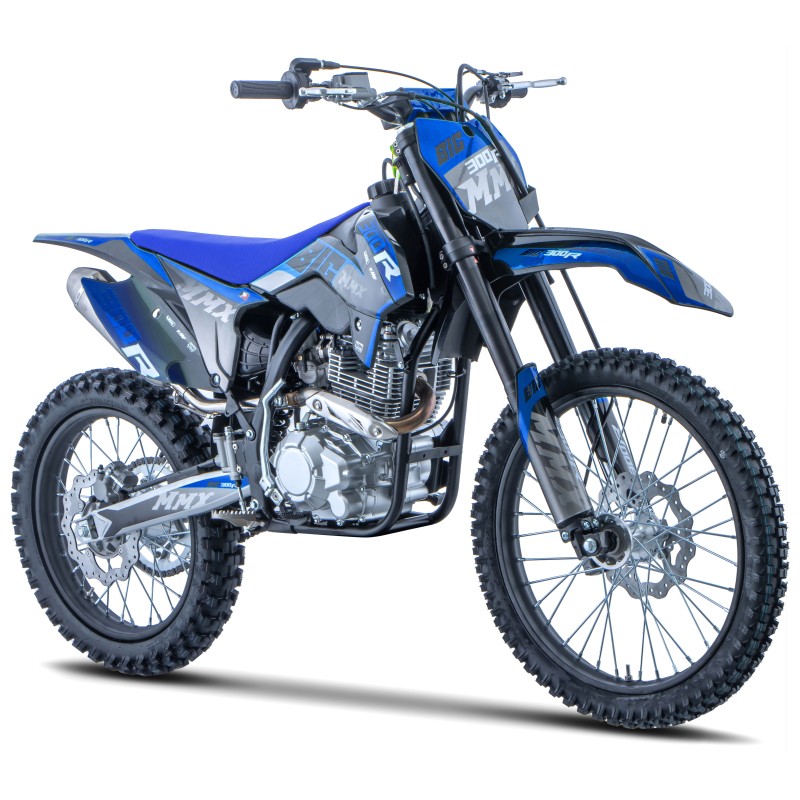

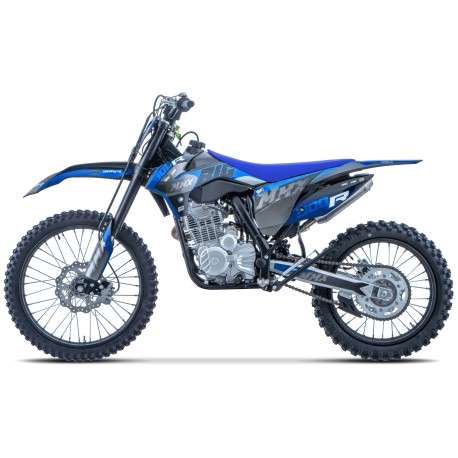

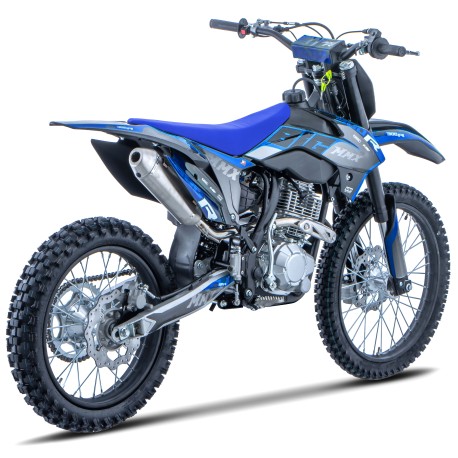

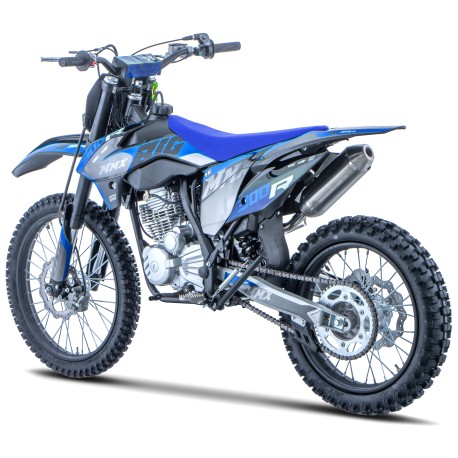

Motocross Mini MX Big R 300cc 4T 18"/21"
The new Mini MX Big R 300cc air-cooled 22hp will charm you with its large 18"/21" black aluminum wheels equipped with Gripster tires at the front and rear. (Not approved for public roads. Motorized vehicle intended exclusively for recreational and sporting use.)
Its seat height is 92cm with an 840mm hydraulic fork in 51/54mm inverted and adjustable with 180 mm of travel, its shock absorber with 90mm of travel.
Vertical 4-stroke 300cc ZONGSHEN 22hp engine:
Its vertical 4-stroke 300cc air-cooled engine, its stainless steel exhaust. Intended for experienced riders, it is not for everyone. Mini MX presents here an ideal bike for cross and enduro rides.
The 300cc air engine develops 16KW at 8500 rpm for 22Nm (Reminder: 1KW = approximately 1.36hp so 16KW x 1.36hp = 22hp)
Its cycle part: Its 850mm hydraulic fork in 45/48mm will allow you to adjust compression and rebound according to your use, preferences, and weight.
Stainless steel exhaust:
An exceptional sound thanks to its full stainless steel line, this configuration helps engine performance.
Double piston hydraulic braking: The 230mm disc clamped by a double piston ensures effective braking.
5-speed oil bath gearbox:
Its gearbox is equipped with 5 speeds 1N2345 in a multi-plate oil bath, a feature that guarantees fast and precise transmission.
520 chain transmission:
Equipped with a thick 520 chain for a transmission originally configured for enduro, it is equipped with a 6-point mounting sprocket.
The assembly:
All our vehicles are delivered pre-assembled on a pallet by a specialized carrier.
You will only need to finish assembling a few easy parts (handlebar, front wheel, shock absorber axle (2 screws)…).
Once the assembly is complete, if the factory settings are not fully adapted to your environment, we invite you to visit our YouTube channel (Mini MX) where you will find both mechanical tutorials and vehicle assembly videos. Our Workshop remains at your full disposal to support you throughout your experience at 09.72.39.05.37 (Free Call), by email [email protected], or via online chat
YouTube channel link : https://www.youtube.com/@MiniMX_
Important information: The oil contained in the engine is storage oil, it is imperative to change it upon vehicle arrival.
We recommend the IPONE or Putoline maintenance packs:
| Putoline | Ipone |
| PUTOLINE 4T 10w40 Semi-Synthetic DX4 Engine Oil 1L | IPONE 10.4 4T 10W40 Engine Oil 1L |
| PUTOLINE 500 ml Carburetor Cleaner Spray | X-TREM IPONE Chain Grease 500ml Off Road |
| PUTOLINE 500 ml Drytec Chain Lubricant Spray | / |
| Kick Start Size | 16mm (Big Size) |
|---|---|
| Engine Type | ZONGSHEN 300cc Single Cylinder, 4 Stroke, 2 Valves, Air Cooled |
| Engine Capacity | 300cc |
| Cooling Type | Air Cooling |
| Carburator | PZ30 |
| Clutch | Manuel 5 Vitesses (1N2345) Multiplaque à bain d'huile |
| Start Up | Kick and electric starter |
| Exaust | INOX Racing Exhaust (BIG 250/300) |
| Fuel | Unleaded 95 / 98 |
| Clutch Type | Manual |
| Exaust Size | 42mm |
|---|---|
| Motorization | Thermal (gasoline) |
| Speed KM/H | 110 and more km/h |
| Number of CVs | 22hp |
| Compression Ratio | 9.29:1 |
| Maximum torque | 22Nm/6500 trs/min |
| Maximum Power | 16Kw/8500 trs/min |
| Horizontal/Vertical Motor | Vertical |
| 4 Stroke / 2 Stroke | 4 Stroke |
| Displacement (ml) | 271.3 |
| Frame | High Tensile Steel Frame with Central Tube |
|---|---|
| Plastic Kit | new |
| Fuel Tank Capacity | 7,5 Liters |
| Swing Arm | High Strength Steel Swing Arm 560mm |
|---|---|
| Cycle Part | CRZ MMX BIG 250/300cc |
| Weight | 112 Kg |
|---|---|
| Seat Height | 94 cm |
| Select by age | 16 year, 17 year, 18 year and more |
| Ground clearance | 35 cm |
|---|---|
| Age group | Adults |
| Select your size CM | 1m65 and more (For Adults) |
| Front Fork | KKE 830mm Adjustable Inverted Hydraulic Fork, 180mm Travel (51/53mm)
VSHOCK 830mm (51/54mm) Inverted Hydraulic Fork |
|---|---|
| Rear Shock | VSHOCK 450mm shock absorber, 90mm travel |
| Clamp | Aluminium - Ø45/48mm |
|---|---|
| Handle Bar | 28,6mm |
| Brake System Front and Rear | Double Piston Front Brake, Single Piston Rear Brake (Hydraulic) |
|---|---|
| Disc Diameter | new |
| Front Disc Diameter | new |
|---|---|
| Center distance Fixation Disc | 58mm |
| Wheel Axle | 15mm |
|---|---|
| Rear and Front Wheel | 18′/21′ aluminum blast hubs |
| Wheel Size | 18"/21" |
| Rear tire | 90/100-18" |
|---|---|
| Front tire | 70/100-21" |
| Transmission | 5 Speeds (1N2345) |
|---|---|
| Chain Size | 520 |
| Sprocket Size | 17mm |
| Chain length (links) | 124 Links |
| Interaxis Fixation Crown | 58mm |
|---|---|
| Number of teeth Sprocket | 13 teeth |
| Number of teeth Crown | 49 teeth |
| Wheelbase | 1320mm |
| Battery Ampere/hour | 12V5AH |
|---|
| HandleBar | Tapered Aluminum 6061 |
|---|
| Color | Blue |
|---|---|
| Warranty | 1 month Engine (Running-in period) 3 months cycle part |
| Brand | CRZ |
| Vintage | 2026 |
| Seat | KTM-L |
| Type of bike | Motocross |
|---|---|
| Type of use | Non homologué pour la voie publique. Véhicule motorisé destiné exclusivement à un usage récréatif et sportif. |
| Shipping origin | France |
| Delivery Label | Motocross 1 |
