• Rear Supermoto Wheel - 12"

Rear Supermoto Wheel - 12"

Ref: ASR-WHSM-AR See the description
199.00€

In stock

Order it before 14:00 of today and receive it between tomorrow and 10/2/26 with DPD Livraison en relais Pickup

Only1 part in stock parts in stock

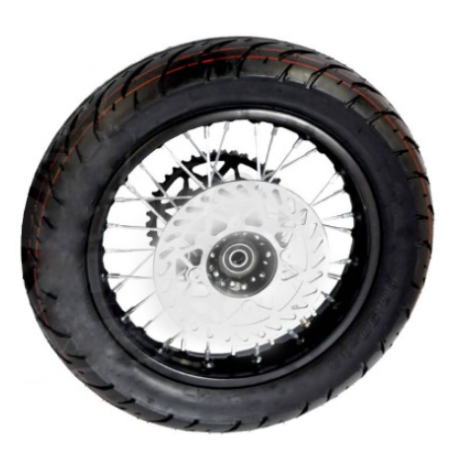

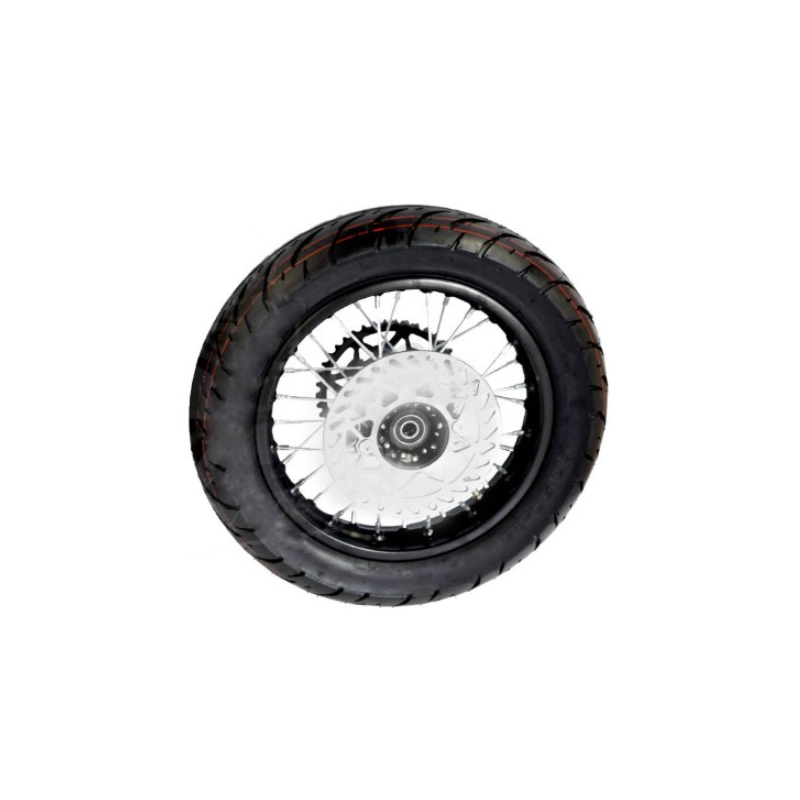

Rear Supermoto Wheel - 12"

This complete 12-inch rear Supermoto wheel is designed for Pit Bikes and Dirt Bikes equipped with a compatible mounting system. It allows a Supermoto setup with a 90/90-12 tyre, while providing the required mounting points for the brake disc and rear sprocket.

The 15 mm wheel axle, 100 mm brake disc mounting centre distance, and 41-tooth sprocket with 420 chain pitch are designed for configurations matching these specifications.

Technical specifications

  • Position: rear
  • Type: complete Supermoto wheel
  • Diameter: 12"
  • Tyre: 90/90-12
  • Wheel axle: Ø15 mm
  • Brake disc diameter: 190 mm
  • Brake disc mounting centre distance: 100 mm
  • Sprocket mounting centre distance: 90 mm
  • Sprocket: 41 teeth
  • Chain pitch: 420

Compatibility
This wheel is intended for Pit Bikes and Dirt Bikes with mounting specifications matching the technical details listed above.

Before ordering, check the wheel axle diameter, brake disc diameter and mounting centre distance, sprocket mounting centre distance, chain pitch and sprocket tooth count, as well as available space around the swingarm.

Installation
When installing the wheel, check the alignment between the brake disc and caliper and the alignment between the chain and sprocket. Also check the correct tightening of the wheel axle and all mounting hardware before use.

Tire

Wheel Axle 15mm
Wheel Size 12'

Others

Type of bike Dirt Bike, Pit Bike
Front/Rear Rear
Shipping origin France
Want us a question about: Rear Supermoto Wheel - 12" Ask a Question
ASR-WHSM-AR
