Triple clamp - 45/48mm - Ø22mm

Ref: 305060700 See the description
39.99€ 10.00€
29.99€

In Stock - Delivery 48H/72H

Order it before 14:00 of tomorrow and receive it between 11/17/26 and 11/18/26 with DPD Livraison en relais Pickup

More than 20 parts in stock

Must-haves

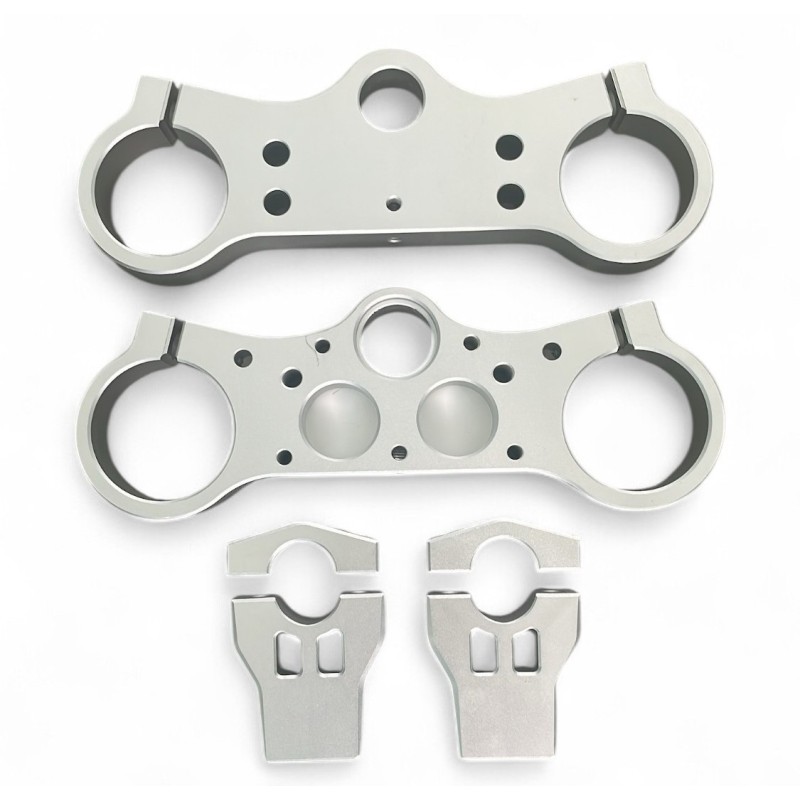

Fork triple clamp - 45/48mm - Ø22mm

Optimize your motorcycle's performance with our 45/48mm - Ø22mm fork triple clamp, designed to offer exceptional stability and control during your off-road adventures. This fork triple clamp is ideal for Dirt Bikes and Pit Bikes, ensuring a smooth and safe riding experience.

Features:

  • Upper fork tube diameter: 45 mm, for increased rigidity and better shock absorption.
  • Lower fork tube diameter: 48 mm, providing optimal strength for the most demanding terrains.
  • Handlebar clamps: Ø22 mm, suitable to accommodate most standard handlebars.
  • Clamp fixing screw diameter: 6 mm x 35 mm (4 screws required, not included) for secure installation.
  • Clamp fixing center distance: 12 mm, ensuring stable attachment.
  • Clamp spacing: 80 mm, allowing versatile adjustment for the handlebar.
  • Steering column diameter of the upper triple clamp: 22 mm/25 mm, with a 55 mm shoulder for robust integration.
  • Diameter of the lower triple clamp steering column: 25 mm/28 mm, with a 5 mm shoulder, ensuring a solid connection to the fork.
  • Steering column: Not provided, to be planned during installation.
  • Fork tube and top clamp screws: 8 mm x 25 mm Allen screws (not provided), required to complete the installation.

Advantages:

  • Improved stability: The robust design ensures better road holding and increased control on difficult terrains.
  • Ease of installation: Although some screws are not provided, assembly is simple and quick thanks to clear specifications.
  • Durability: Made from high-quality materials, this triple clamp is designed to withstand the rigors of off-road riding.

The 45/48mm - Ø22mm fork triple clamp is an ideal choice for motocross enthusiasts looking to improve their bike's performance and safety. Don't let anything compromise your rides – choose this reliable and high-performance triple clamp!

Suspension

Fork crown size 45/48mm

Others

Type of bike Dirt Bike, Pit Bike
Shipping origin France

Questions about Triple clamp - 45/48mm - Ø22mm (1)

Questions asked in other languages

  • Bonjour compatible sur la 250crz 16/19 ?

    FR Question from Corti K., on

    Answer from the Mini MX team

    Bonjour non il vous faut la ref P1328
