Rear Brake Kit - CRZ BW - 125/150cc

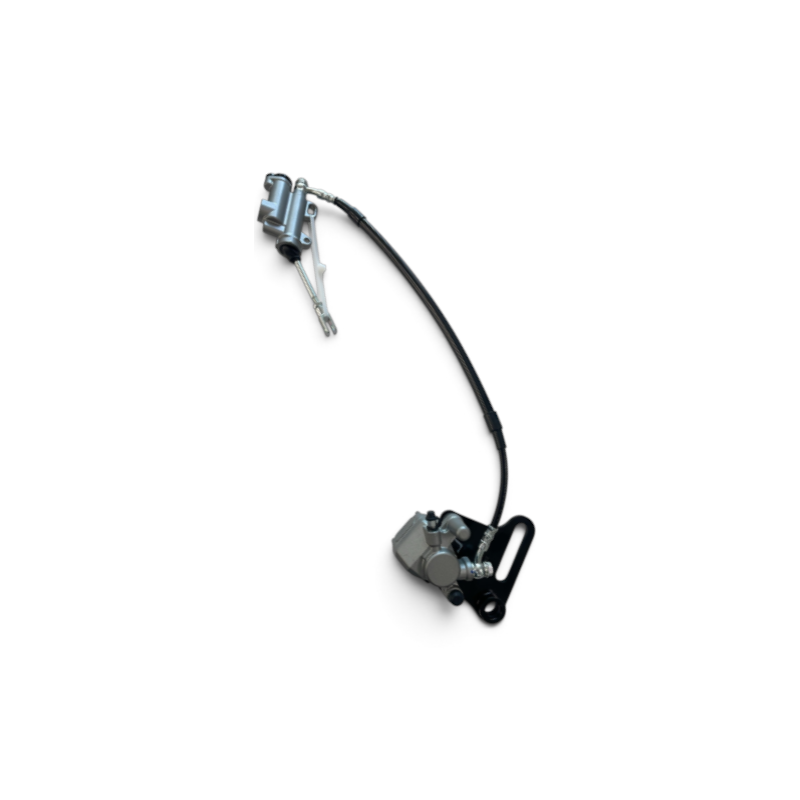

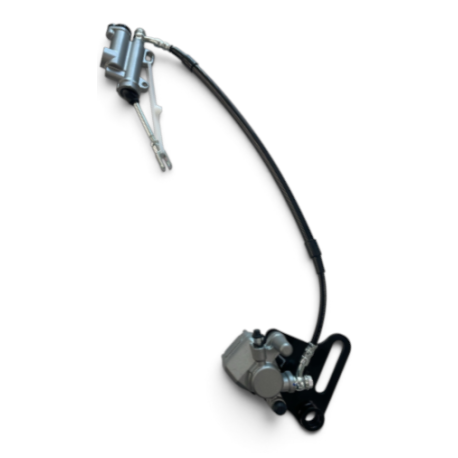

This rear brake kit is designed for CRZ BW 125cc and 150cc models equipped with 14/17" wheels. It is a complete replacement braking system designed to restore effective and reliable rear braking performance on your Pit Bike.

Featuring a single-piston caliper, this system provides a reliable solution for rear wheel braking. The kit includes a master cylinder with a 45 mm mounting centre distance, along with a 500 mm brake hose connecting the master cylinder to the caliper.

With a 100 mm rod and a mounting configuration designed for a Ø15 mm wheel axle, this kit is specifically suited to the compatible CRZ BW configuration. It is an ideal replacement solution for a worn, damaged or defective rear braking system.

Technical specifications

  • Type: Rear brake kit
  • Caliper type: Single piston
  • Wheel axle diameter: Ø15 mm
  • Master cylinder mounting centre distance: 45 mm
  • Brake hose length: 500 mm
  • Rod length: 100 mm
  • Position: Rear
  • Compatible wheels: 14/17"

Compatibility

  • CRZ BW 125cc with 14/17" wheels
  • CRZ BW 150cc with 14/17" wheels

Replacement and installation

This kit is designed to replace the original rear braking system on compatible models. Before installation, we recommend checking the dimensions of the existing braking system, particularly the wheel axle, master cylinder mounting centre distance and brake hose length.

After installation, the brake system must be properly bled to remove any air from the circuit. Also check the correct operation of the master cylinder and caliper, as well as proper lever and pedal return, before riding.

Important: Always check your CRZ BW model and the dimensions of the original braking system before ordering.

Others

Type of bike Dirt Bike, Pit Bike
Front/Rear Rear
Shipping origin France
